- Footprint of skid base = 1390mm long x 650mm wide.
- Overall height with capstan wheel horizontal = 750mm.
- Approximate total weight (wet) = 470kg.
- Heavy duty planetary gearbox and hydraulics.
- Standard 1.3m diameter cast aluminium capstan wheel.
- Fuel efficient, electric start 14 HP Kohler engine complete with hour meter.
- Full operator adjustable 0 – 5kN line tension.
- Full operator adjustable 0 – 60m/min capstan wheel rotation speed.
- Full function remote foot control capstan forward / reverse treadle switch, push button capstan tilt angle adjustment and large emergency engine stop.

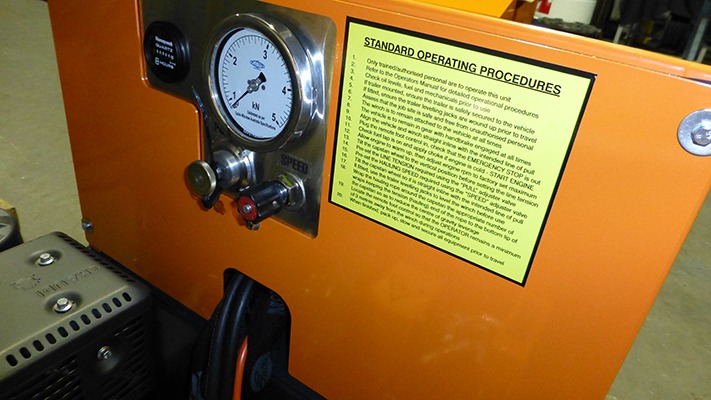

- kN gauge, kN line tension control, capstan speed control rear dash mounted.
- Mild steel, powder coated fabrication – std. charcoal / orange colour scheme.
- Standard Safety signs – nip points etc.
- Standard Operating Procedures sign.
- Operation Manual including full Hazard Identification and Risk Assessment, log book and factory calibration certification.

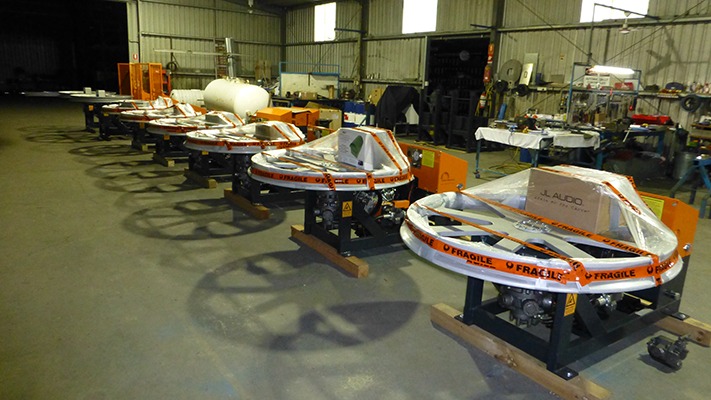

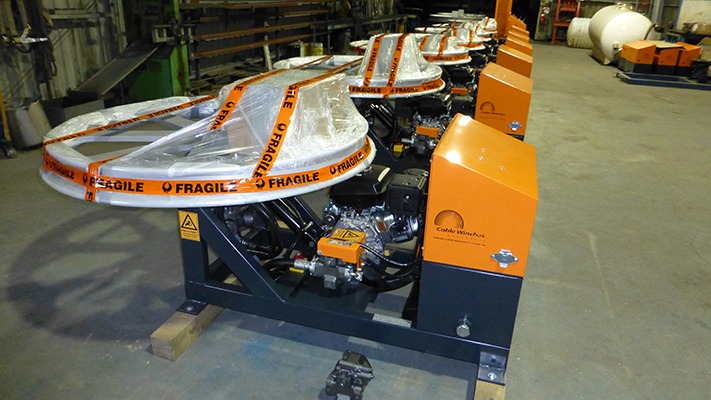

Series 3 – Compact Winch

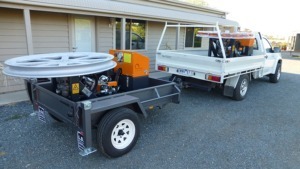

The Series 3 was developed in conjunction with Service Stream. They required a more compact unit without the aerial capability, as a result this unit can fit in the back of a typical 4 door cab chassis utility and does not require an operator up on the vehicel. A multifunction foot control was added to complement the single man operation.
Additional information
| Optional Extras | Please refer to our OPTIONS FOLDER |
|---|
